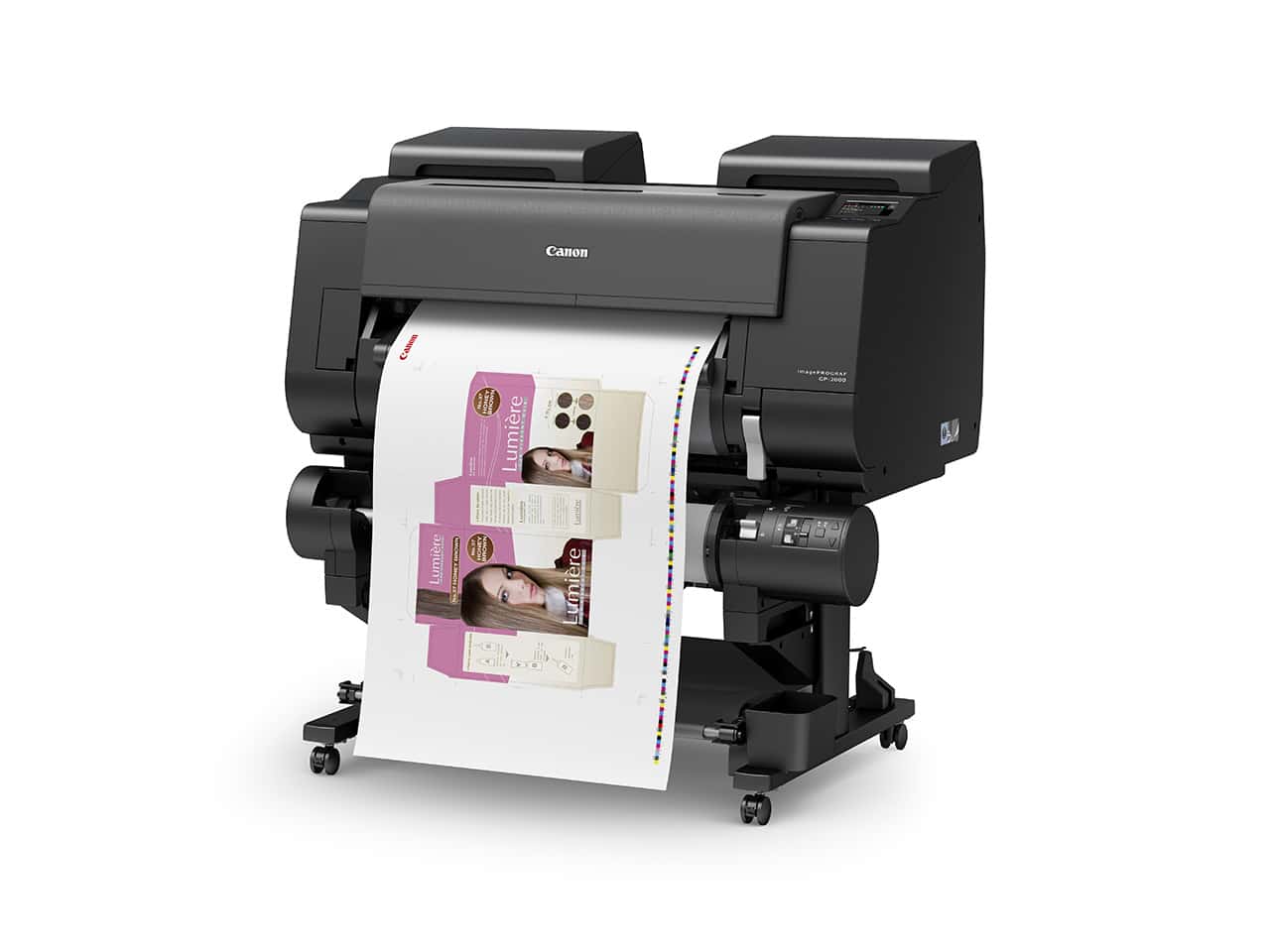

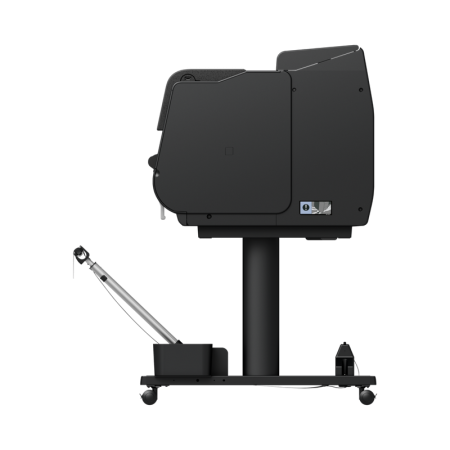

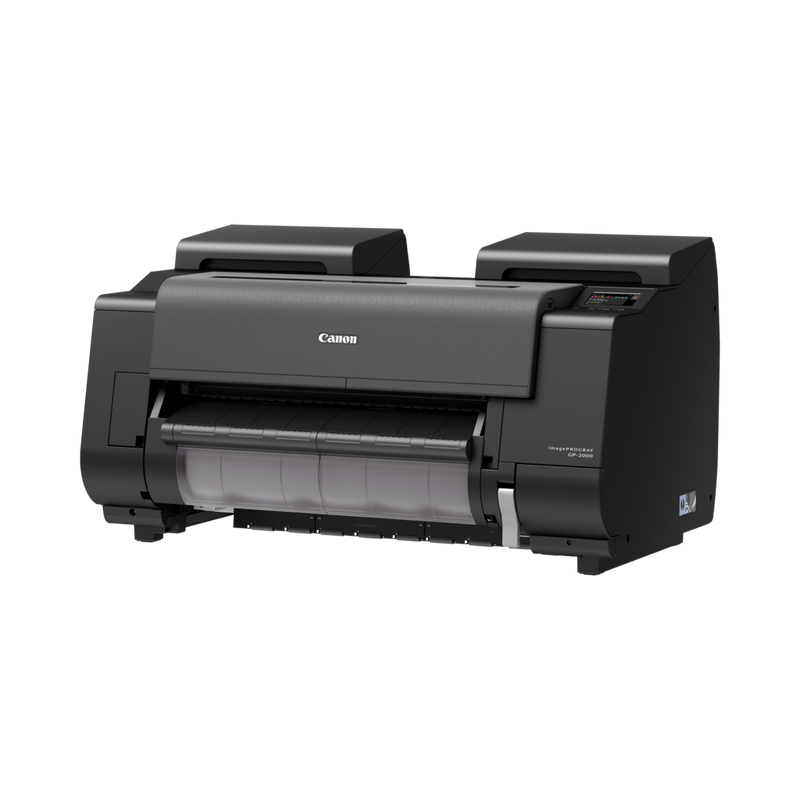

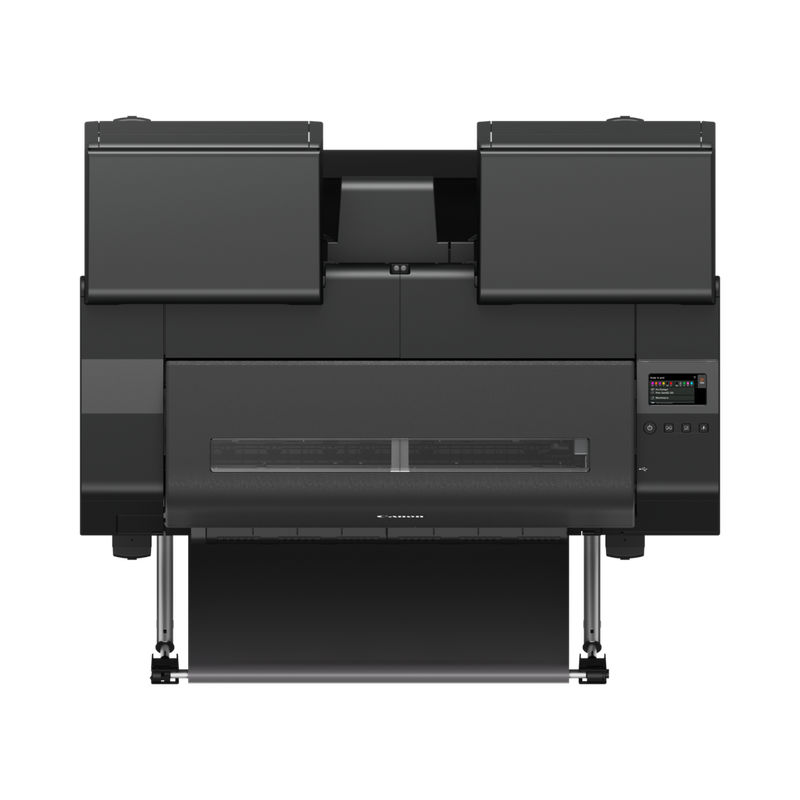

Canon imagePROGRAF GP-2000 printer with stand, 2 rolls, 1,930 ml ink

Canon imagePROGRAF GP-2000 printer with stand, 2 rolls, 1,930 ml ink

Harness the potential of computer graphics with innovative printing technology and industry-leading finishing, delivered by an 11-color, 24-inch large format printer.

An extremely wide color gamut encourages the creation of stunning computer graphics.
With the 11-color Canon large format printer supporting fluorescent mode, you can produce impressive, colorful computer graphics prints. Available features streamline professional work, allowing you to push creative boundaries without sacrificing productivity.

Exceptional Color Gamut
Enhance computer graphics with vibrant, top-quality prints using a wide color gamut that includes five new colors—red, orange, green, violet—and fluorescent pink, enabling the creation of neon and pastel shades.

Professional Print Quality
The imagePROGRAF GP-2000 is the world’s first printer calibrated for PANTONE™(1)(2) matching the PANTONE PASTELS & NEONS GUIDE Coated(3), complementing 99% coverage of the PANTONE FORMULA GUIDE Solid Coated(4).

High Productivity

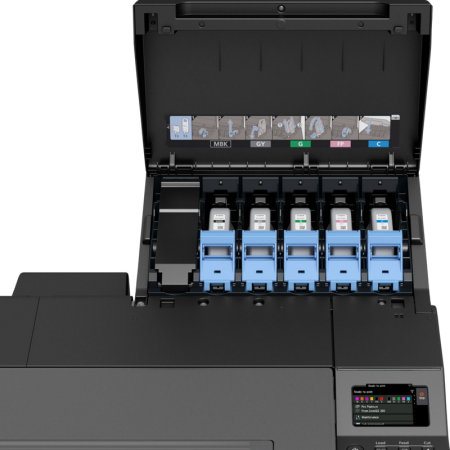

Multi-function roll systems and smart media rolls enable the production of professional-quality prints. Additionally, replaceable ink tanks during operation prevent printing interruptions.

Security Guarantee
Secure printing with PIN access protects against data loss or leaks, allowing safe processing of sensitive data.

Technical Specifications

Printing Technology

• Printer Type: 11-color, 24 inches

• Printing Technology: Canon Bubblejet on demand, 11 integrated colors (12 layouts on print head × 1 print head)

• Print Resolution: 2400 × 1200 dpi

• Nozzle Count: Total 18,432 nozzles (MBK, PBK, C, M, Y, GY, R, O, G, V, FP: 1536 nozzles each)

• Line Accuracy: ±0.1% or less (user adjustment required; printing environment and media must match settings)

• CAD Media Required: Plain paper, CAD tracing paper, coated paper, matte translucent CAD film only

• Nozzle Pitch: 600 dpi × 2, includes detection and compensation for non-functioning nozzles

• Ink Droplet Volume: Minimum 4 pl per color

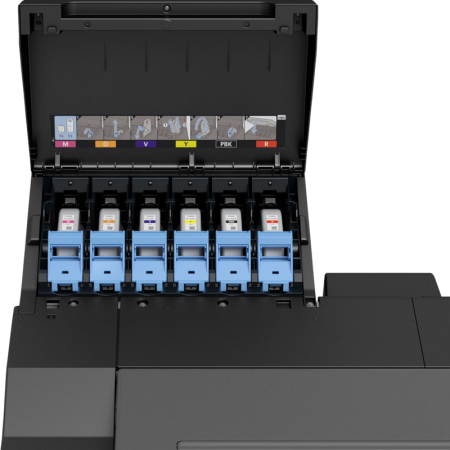

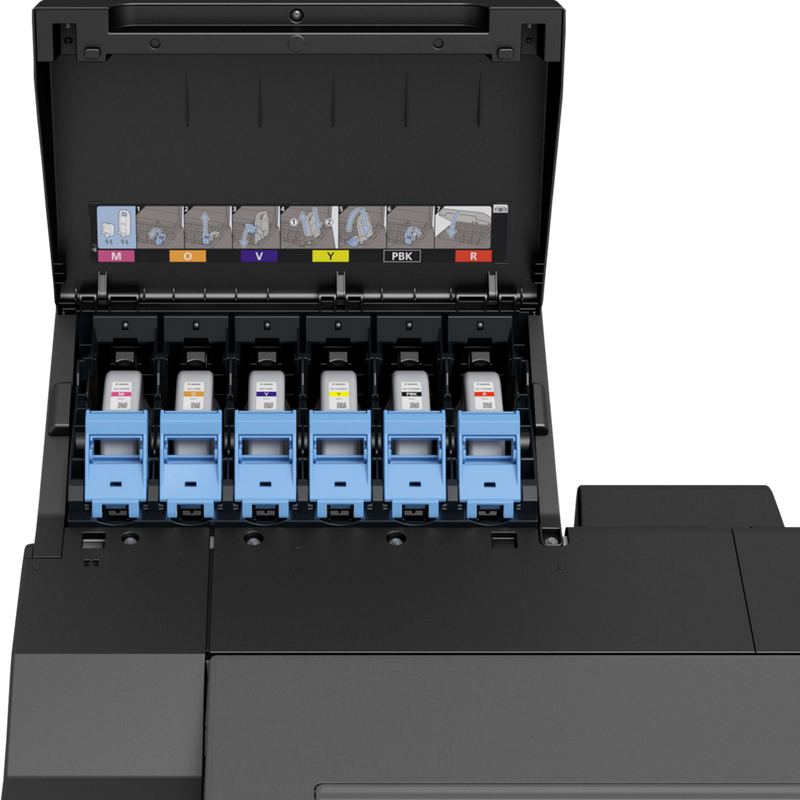

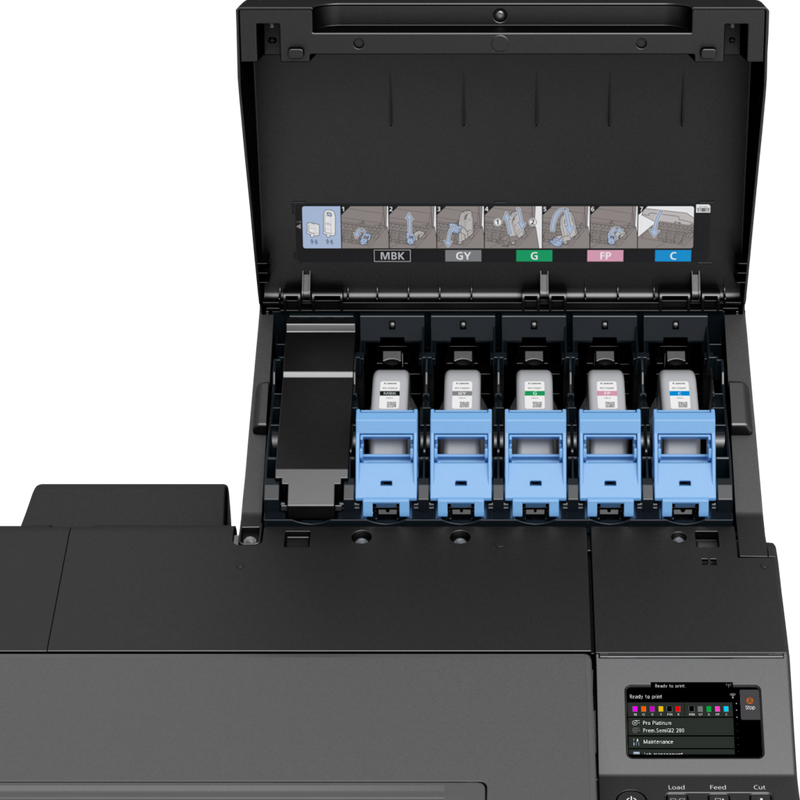

• Ink Tank Capacity: Starter ink included—330 ml (MBK), 160 ml (others); Commercial ink—160 ml, 330 ml, 700 ml

• Ink Type: Pigment ink, 11 colors—MBK, PBK, C, M, Y, GY, R, O, G, V, FP

Operating System Compatibility

• Microsoft Windows (32-bit): 7, 8.1, 10

• Microsoft Windows (64-bit): 7, 8.1, 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019

• Apple Macintosh: macOS 10.13.6 to macOS 11

Printer Languages

• PDF (version 1.7), JPEG (JFIF version 1.02)

Standard Interfaces

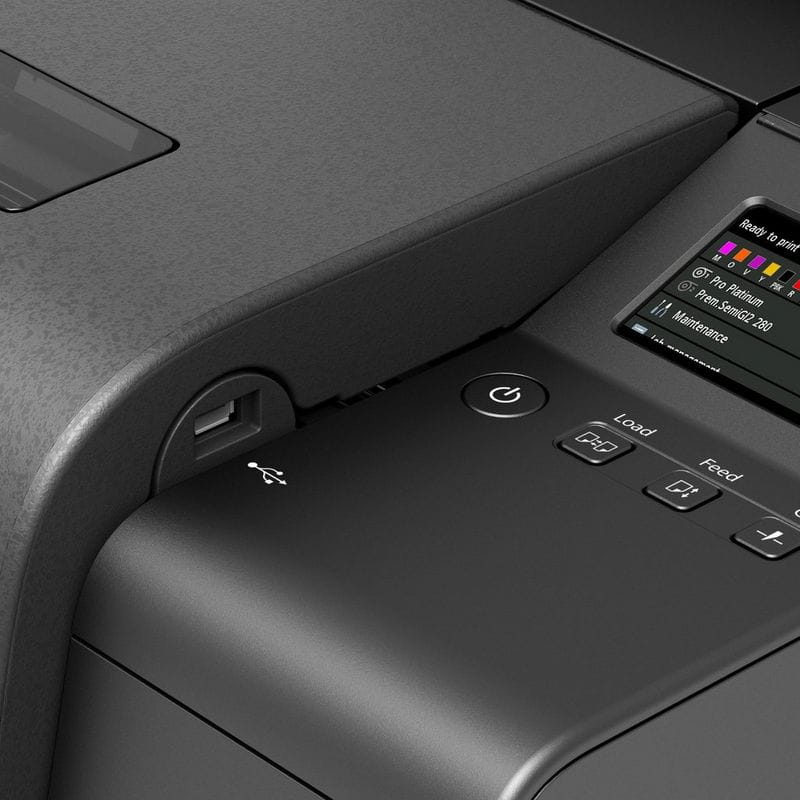

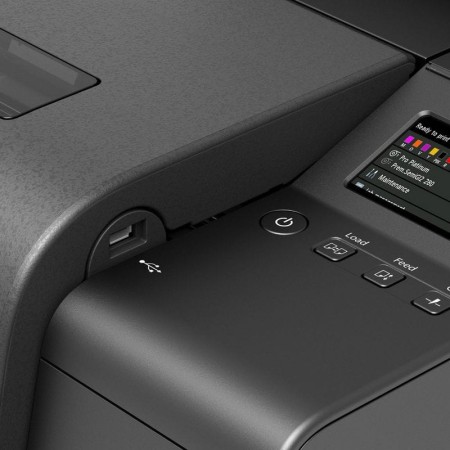

• USB A: Direct printing from USB memory for JPEG/PDF files

• USB B: Built-in Hi-Speed USB

• Ethernet: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX (auto-negotiation), IEEE 802.3ab 1000base-T (auto-negotiation), IEEE 802.3x full duplex

• Wireless LAN: IEEE802.11n/g/b (*Enabling/disabling wireless LAN is detailed in the user manual)

Memory

• Standard Memory: 3 GB

• Expansion Slot: None

• Hard Drive: 500 GB (encrypted)

Printing Speed

• Poster, Plain Paper (A1):

  • Fast Mode: 0:59

  • Standard Mode: 1:37

• Thick Coated Paper (A1):

  • Standard Mode: 1:37

  • High Quality: 3:09

• Photo Paper (A1):

  • Standard Mode: 3:08

  • High Quality: 4:40

Media Handling

• Media Feeding and Receiving:

  • Upper roll paper: one roll, front loading and front receiving

  • Lower roll paper: one roll, front loading and front receiving

  • Sheets: front loading and front receiving (manual feed with media lock lever)

• Media Width:

  • Roll Paper: 152.4–610.0 mm

  • Sheets: 152.4–610.0 mm

• Media Thickness:

  • Roll/sheets: 0.07–0.8 mm

• Minimum Print Length:

  • Roll Paper: 101.6 mm

  • Sheets: 203.2 mm

• Maximum Print Length:

  • Roll Paper: 18 m (depending on OS and app)

  • Sheets: 2133.6 mm (with stand)

• Maximum Roll Diameter: 170 mm

• Roll Core Size: 2-inch / 3-inch internal diameter

• Recommended Margins:

  • Roll Paper – top: 20 mm, bottom: 3 mm, sides: 3 mm

  • Sheets – top: 20 mm, bottom: 20 mm, sides: 3 mm

• Printable Area Margins:

  • Roll Paper – top: 3 mm, bottom: 3 mm, sides: 3 mm

  • Roll Paper (borderless printing): top, bottom, sides: 0 mm

  • Sheets – top: 3 mm, bottom: 20 mm, sides: 3 mm

• Paper Capacity:

  • Roll Paper: 1 roll

  • Sheets: 1 sheet

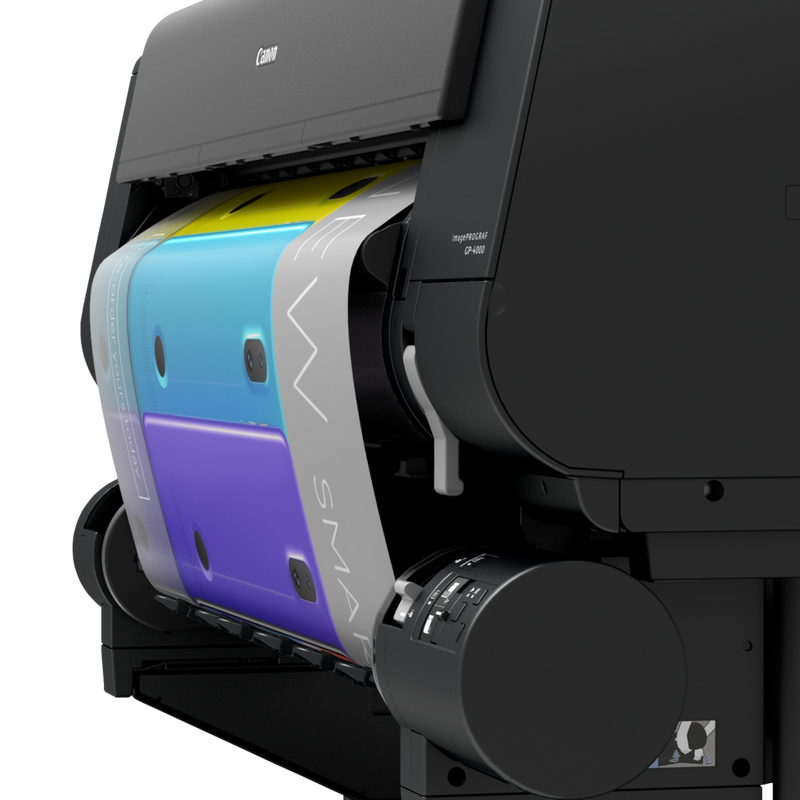

• Roll Media Take-Up Module: Two-way module allows winding printed surface inward or outward

• Borderless Print Width (roll only):

  • Recommended: 515 mm (JIS B2), 594 mm (ISO A1), 10", 14", 17", 24"

  • Printable: 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 6", 8", 12", 15", 16", 20", 22", 300 mm, 500 mm, 600 mm, custom roll width (152.4–610.0 mm)

• Maximum Prints in Delivery:

  • Standard Position: 1 sheet

  • Flat Position: horizontal A2, up to 10 sheets glossy paper, up to 20 sheets coated paper (excluding heavily curled paper)

Power and Environment

• Power Supply: AC 100–240 V (50/60 Hz)

• Power Consumption:

  • Operating: max 84 W

  • Sleep Mode: max 2.0 W (default sleep delay about 5 minutes)

  • Off: max 0.3 W

• Operating Environment:

  • Temperature: 15–30℃

  • Relative Humidity: 10–80% (no condensation)

• Noise Levels (Power/Pressure):

  • Operating: 48 dB(A) (plain paper, standard mode, poster; ISO7779 measurement)

  • Standby: max 35 dB(A)

  • Operating: 6.5 bels (plain paper, standard mode, poster; ISO7779 measurement)

Regulations

• Europe: CE mark

• Other countries: CB certification

• Environmental Certifications: TUV, CB

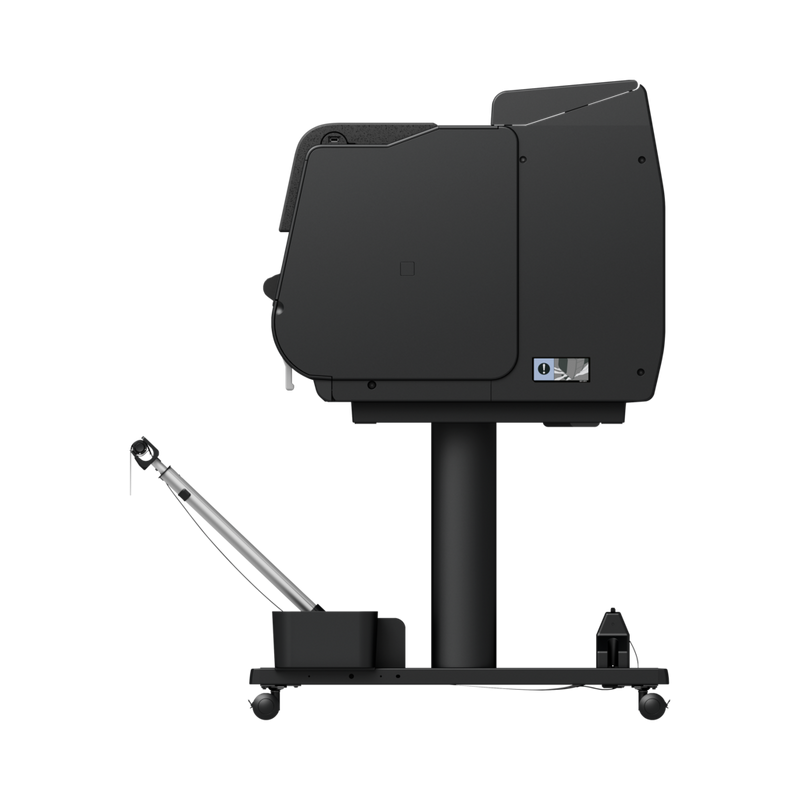

Dimensions and Weight

• Dimensions and Weight:

  • 1100 × 984 × 1168 mm (basket open)

  • 1100 × 766 × 1168 mm (basket closed)

  • 102 kg (main unit + stand + basket, with roll holder, without ink and print head)

• Dimensions and Weight in Packaging:

  • Printer (main unit with pallet): 1324 × 902 × 1042 mm, 125 kg

  • Stand + Basket: 1111 × 797 × 223 mm, 23 kg

  • Roll Module: 1244 × 562 × 461 mm, 26 kg

Contents

• Package Contents:
  Printer, 1 print head, 1 roll holder (spool), 3-inch paper core adapter, power cord, starter ink tank set, printer stand installation manual, quick start guide, standard safety/environment leaflet, software CD-ROM (Windows), PosterArtist Lite CD-ROM, EU biocide product sheet, important information sheet

• Included Software:
  imagePROGRAF GP printer driver and PosterArtist Lite
  Other software available for download online

Optional Accessories

• Printer Stand: SD-21

• Roll Holder (2/3"): RH2-29

• Roll Module: RU-23

Consumables

• User Replaceable Parts:
  Ink tanks: PFI-2100 (160 ml), PFI-2300 (330 ml), PFI-2700 (700 ml)
  Print Head: PF-10
  Cutter Blade: CT-07
  Maintenance Cartridge: MC-30
