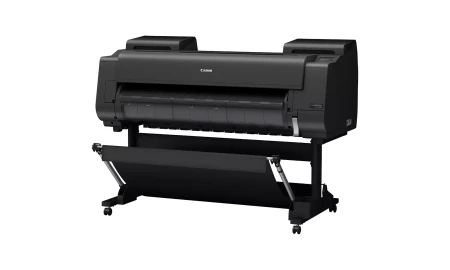

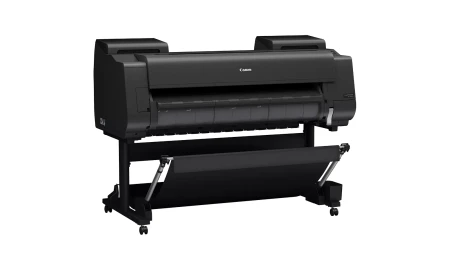

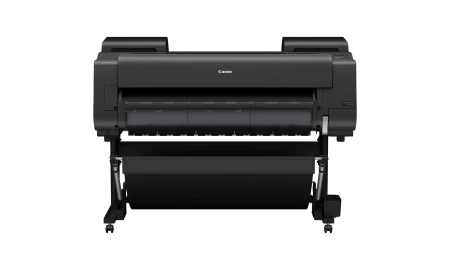

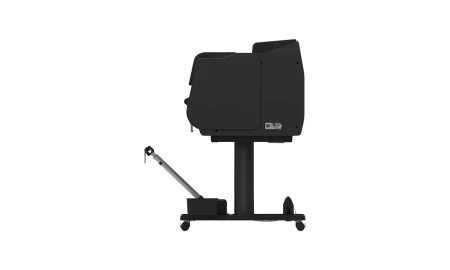

Canon imagePROGRAF GP-4600 printer with stand, 2 rolls**

The Canon imagePROGRAF GP-4600S large-format printer with a 44-inch width, equipped with the newly developed seven-color LUCIA PRO II ink system, is designed to elevate the production of signs, advertising, and business prints to a higher level. The GP S series, utilizing orange ink, aims to deliver vivid and durable prints with high lightfastness, ensuring long-lasting print durability, improved black density, a wider range of dark color gamut, and excellent scratch resistance. The seven-color ink system, including orange ink, achieves 96% accuracy compared to the Solid Coated PANTONE™ FORMULA GUIDE.

Detailed Technical Specifications

Printing Technology

• Print Head: PF-10

• Number of Nozzles: (MBK/C/M/Y/O: 1,536 nozzles x2; BK/GY: 1,536 nozzles x1) — total 18,432 nozzles

• Droplet Size: Minimum 4 picoliters per color

• Ink Type: MBK, BK, C, M, Y, GY, O

Ink Tanks:

• Included with printer: 330 ml each color

• Replacement options:

  • 160 ml PFI-3100 (BK, C, M, Y, GY)

  • 160 ml PFI-2100 (MBK, O)

  • 330 ml PFI-3300 (BK, C, M, Y, GY)

  • 330 ml PFI-2300 (MBK, O)

  • 700 ml PFI-3700 (BK, C, M, Y, GY)

  • 700 ml PFI-2700 (MBK, O)

Printer Memory:

• Standard Memory: 3 GB

• Hard Drive: 500 GB

Media Feeding:

• Roll Feed: Single roll, front output

• Manual Feed: Front loading, front output

Media Width:

• Roll Feed: 6” – 44” (152.4 – 1,118 mm)

• Cut Sheet: 6” – 44” (152.4 – 1,118 mm)

Media Cutter:

• Automatic horizontal cutting (rotary blade): Standard

Media Thickness:

• 0.002” – 0.03” (0.07 mm – 0.8 mm)

Core Sizes:

• Standard core 2”. Roll core holder set 2”/3” (RH2-46)

Maximum Outer Roll Diameter:

• 6.7” or less (170 mm or less)

Media Output:

• Catch basket

Printing Software:

• Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF printer driver for Windows/Mac, Media Configuration Tool, PosterArtist, Canon Print Service, Professional Print

Operating Systems:

• Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7 – MacOS 13

Print Languages:

• Printer: SGRaster (Swift Graphic Raster), PDF, JPEG

Interfaces:

• Standard (built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)

Power Supply:

• AC 100 – 240V (50 – 60 Hz)

Power Consumption:

• Maximum: approx. 94W

• Standby: approx. 1.7W

• Power Off: approx. 0.1W

Environmental Certifications:

• ENERGY STAR (Worldwide), EPEAT Gold

Operating Environment:

• Temperature: 15 – 30 °C (59 – 86 °F)

• Relative Humidity: 10 – 80% (no condensation)

Printer Dimensions (W x D x H) and Weight:

• (With stand and open catch basket) 62.7” x 38.7” x 46” (1594 x 983 x 1168 mm), 122 kg

Packaging Dimensions (W x D x H) and Weight:

• (Main unit with pallet) 71.7” x 36” x 41.2” (1821 x 914 x 1046 mm), 181 kg

Options:

• Multi-function Roll Unit (RU-43)

• Roll Holder Set 2”/3” (RH2-46)

User-Replaceable Parts:

• Ink Tanks: PFI-3100 (160 ml)/PFI-3300 (330 ml)/PFI-3700 (700 ml) BK, C, M, Y, GY; 160 ml PFI-2100/330 ml PFI-2300/700 ml PFI-2700 MBK, O

• Print Head (PF-10)

• Maintenance Cartridge (MC-30)

• Cutting Blade (CT-07)

Package Contents:

• Canon imagePROGRAF GP-4600S printer

• Starter ink set 330 ml

• 1 print head

• Maintenance cartridge

• Roll holder 2” with 3” adapters

• Additional roll
