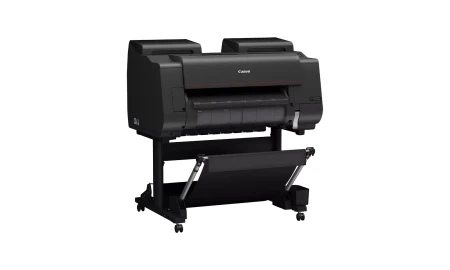

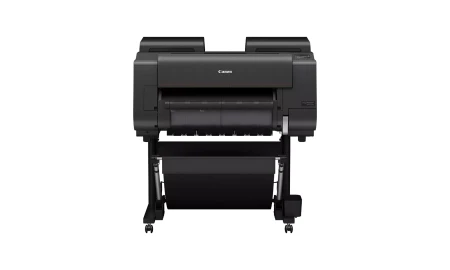

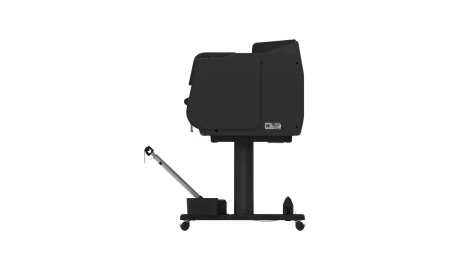

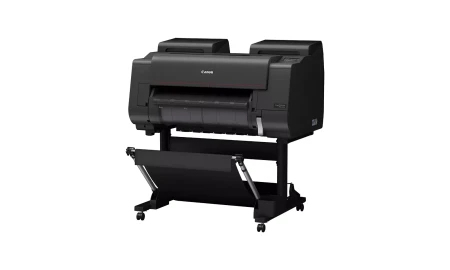

Canon imagePROGRAF PRO-2600 Printer (dual-roll) with stand

Canon imagePROGRAF PRO-2600 (24") Large-Format Professional Printer (Dual-Roll) with Stand

The professional 24” Canon imagePROGRAF PRO-2600 large-format printer features an 11-color pigment ink system plus Chroma Optimizer, designed to bring your photos and reproductions to life. This large-format photo and fine art printer includes a newly developed ink set* that provides improved scratch resistance and enhanced color durability**, enabling exceptional, detail-rich prints.

Built-in technologies such as intelligent media handling, color calibration, sub-ink tank system, transparent covers for media and ink tanks, and internal light preview make this printer exceptionally efficient and user-friendly.

The PRO-2600 is the first in the imagePROGRAF PRO series to be registered as EPEAT Gold and ENERGY STAR® certified, with eco-friendly packaging that replaces EPS with cardboard.

The printer supports a wide range of software solutions tailored for creative and business needs, including:
Professional Print & Layout, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more.

Technical Specifications

Printing Technology

• Print Head: PF-10

• Nozzles: 1,536 nozzles × 12 colors = 18,432 total

• Droplet Size: 4 picoliters per color

• Ink Type: Pigment inks – BK, MBK, C, M, Y, PC, PM, GY, PGY, R, B + Chroma Optimizer

Ink Tanks

• Starter tanks: 160 ml per color

• Replacement options:

  • 160 ml: PFI-3100 (BK, C, M, Y, PC, PM, GY, PGY, R, B, CO), PFI-2100 (MBK)

  • 330 ml: PFI-3300 (colors), PFI-2300 (MBK)

  • 700 ml: PFI-3700 (colors), PFI-2700 (MBK)

Memory & Storage

• Standard Memory: 3 GB

• Hard Drive: 500 GB

Media Handling

• Roll Feed (Front): Single roll, front output

• Manual Feed (Front): Front input, front output

• Media Width:

  • Rolls & Sheets: 6" – 24" (152.4 – 610 mm)

• Media Thickness: 0.002” – 0.03” (0.07 – 0.8 mm)

• Roll Core Sizes: 2” standard (2"/3" with RH2-29 adapter)

• Max Roll Diameter: Up to 6.7" (170 mm)

• Media Output: Catch basket

• Cutter: Automatic horizontal rotary cutter (standard)

Software

• Included:
  Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus,
  imagePROGRAF Printer Driver (Windows/Mac), Media Configuration Tool, PosterArtist,
  Canon Print Service, Professional Print & Layout, Quick Utility Toolbox

Operating System Compatibility

• Windows: 7/8.1/10/11 (32/64-bit), Server 2008R2 to 2022

• macOS: 10.15.7 – macOS 13

Printer Language Support

• SGRaster (Swift Graphic Raster), PDF, JPEG

Connectivity

• USB 2.0 Hi-Speed

• Ethernet: 10/100/1000Base-T

• Wi-Fi: IEEE 802.11 b/g/n

Power & Environmental

• Power Supply: AC 100–240V (50–60 Hz)

• Power Consumption:

  • Max: ~85 W

  • Standby: ~1.7 W

  • Off: ~0.1 W

• Certifications: ENERGY STAR®, EPEAT Gold

• Operating Conditions:

  • Temperature: 15 – 30 °C (59 – 86 °F)

  • Humidity: 10 – 80% RH (non-condensing)

Dimensions & Weight

• Printer with stand and open basket: 43.7" (W) × 38.7" (D) × 46" (H), 224.9 lbs

• Shipping (with pallet): 52.1" × 35.9" × 44.8", 304.2 lbs

Optional Accessories

• Multifunction Roll Unit (RU-23)

• 2”/3” Roll Holder Set (RH2-29)

User-Replaceable Parts

• Ink Tanks: 160 ml / 330 ml / 700 ml

• Print Head: PF-10

• Maintenance Cartridge: MC-30

• Cutter Blade: CT-07

What’s in the Box

• Canon imagePROGRAF PRO-2600 Printer

• 12 × 160 ml Starter Ink Tanks

• 1 × Print Head

• 1 × Maintenance Cartridge

• 2” Roll Holder with 3” Adapters

• Additional Roll Unit

Downloadable File:

Canon imagePROGRAF PRO-2600 pdf
