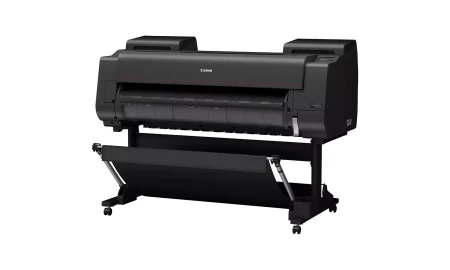

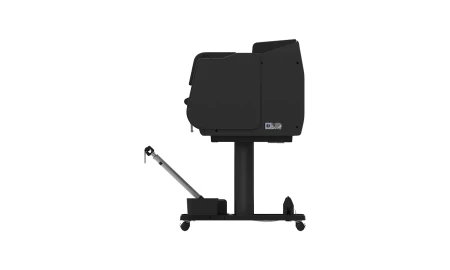

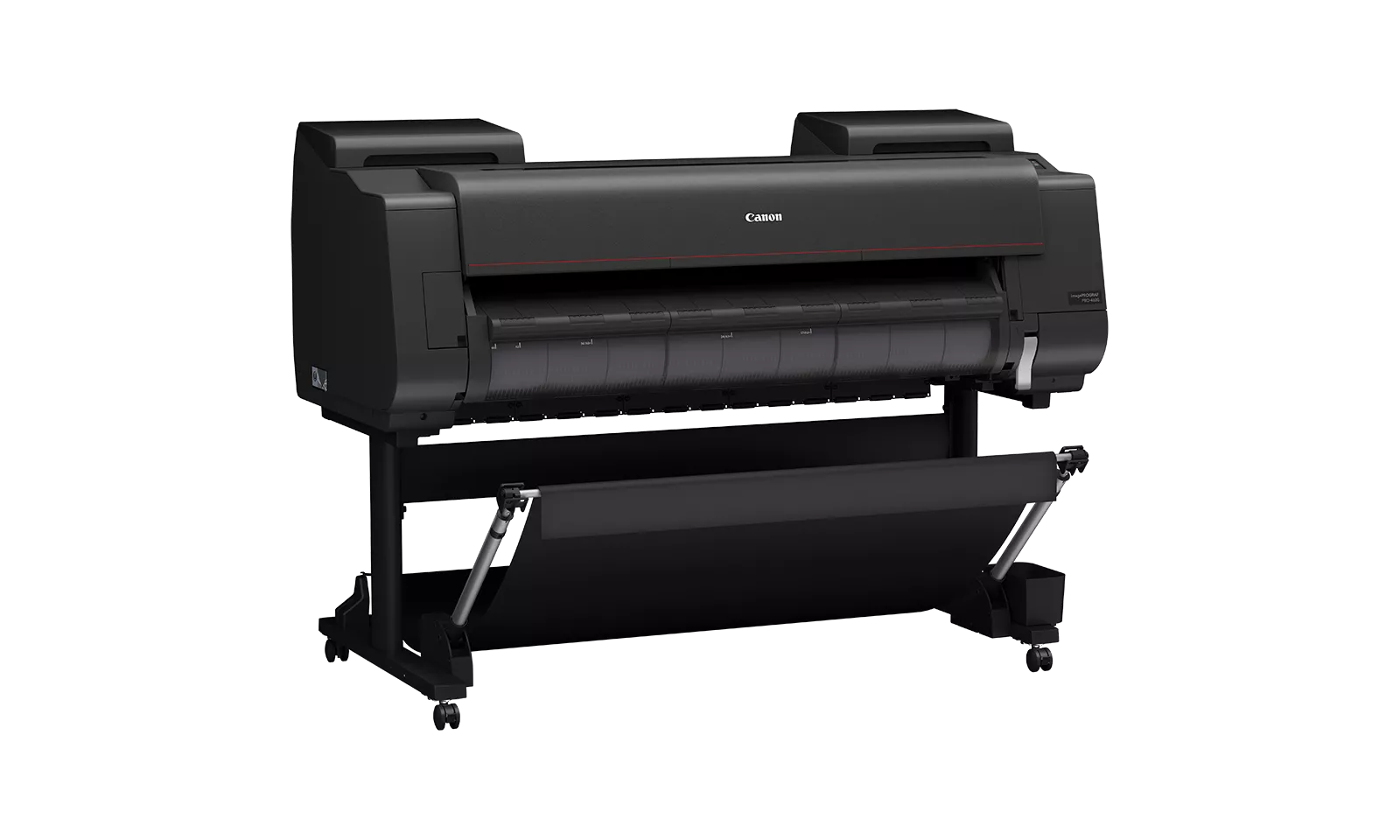

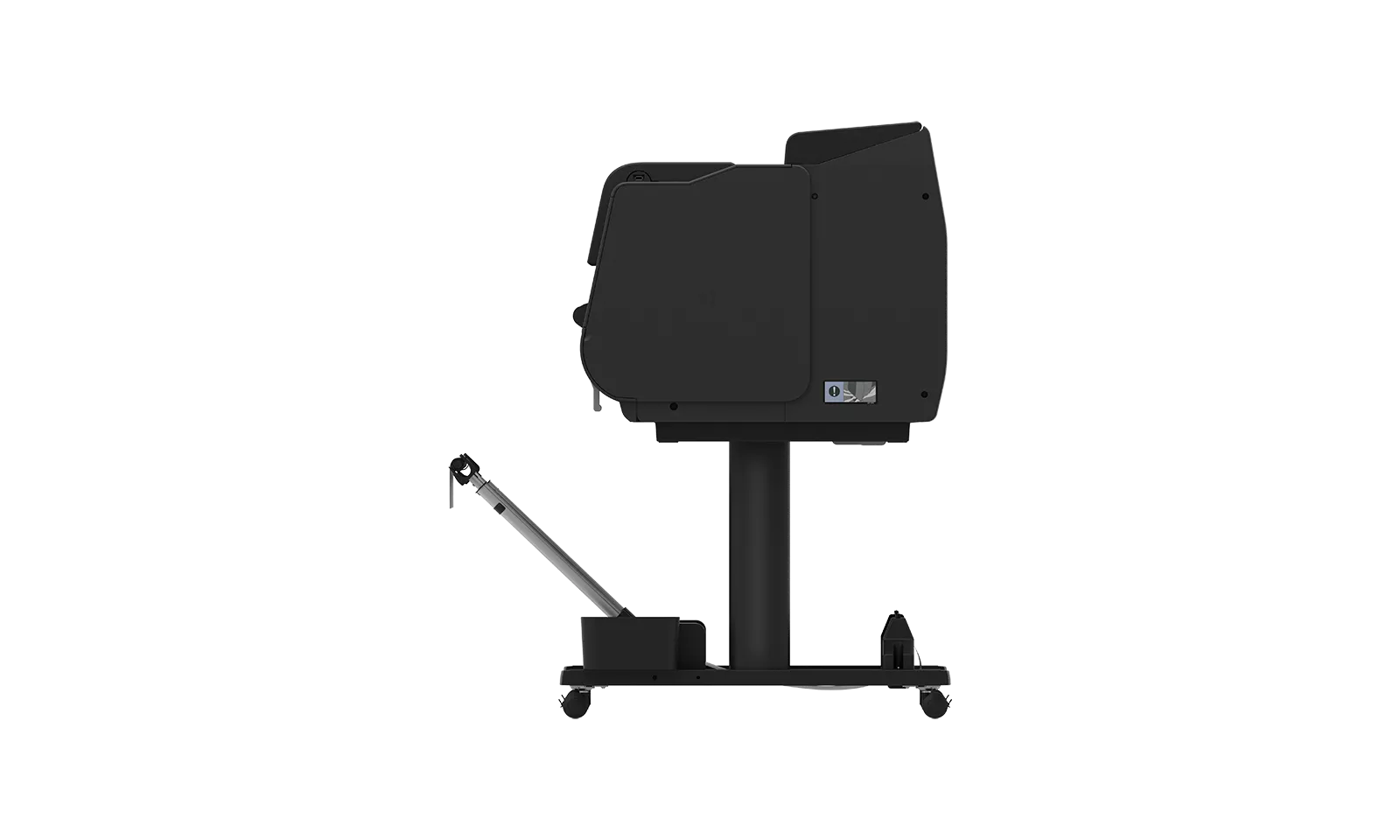

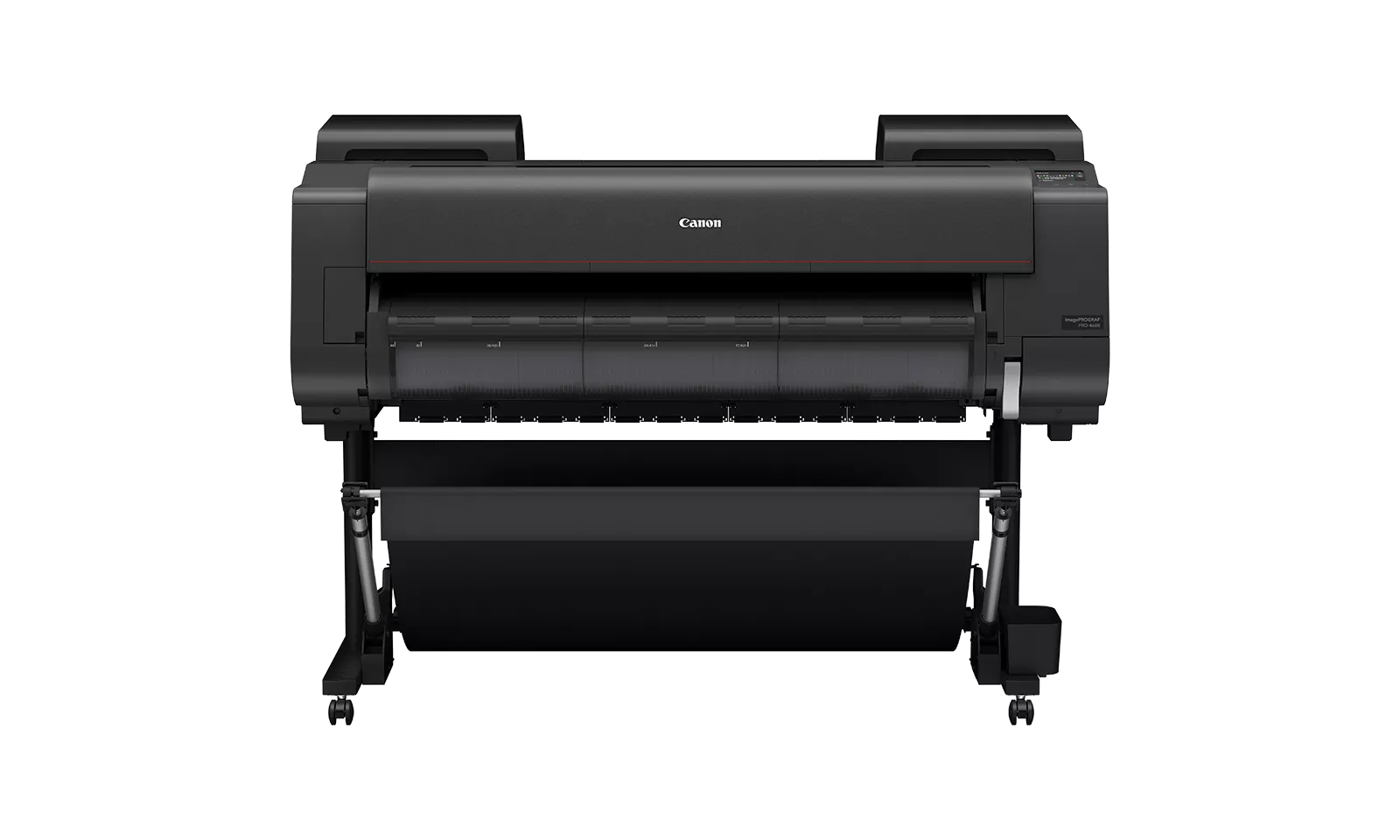

Canon imagePROGRAF PRO-4600 (Dual Roll) Large Format Printer with Stand

The Canon imagePROGRAF PRO-4600 is a professional 44" large-format printer that features an 11-color pigment ink system plus Chroma Optimizer, designed to bring your photos and fine art reproductions to life. Equipped with a newly developed ink set that provides high scratch resistance and improved color durability**, this printer ensures stunning prints with flawless detail.

The PRO-4600 is packed with intelligent features including smart media handling, color calibration, sub-ink tank system, transparent covers for media and ink tanks, and internal lighting for visual inspection. Certified as EPEAT Gold (the first in the imagePROGRAF PRO series) and ENERGY STAR, this series now uses cardboard packaging instead of EPS foam.

The PRO-4600 is compatible with a wide range of software solutions to support daily business needs, including Professional Print & Layout, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more.

Technical Specifications

Printing Technology

• Print Head: PF-10

• Nozzles: 1,536 nozzles × 12 colors = 18,432 nozzles

• Drop Size: 4 picoliters per color

• Ink Type: Pigment-based (BK, MBK, C, M, Y, PC, PM, GY, PGY, R, B, + Chroma Optimizer)

Ink Tank Capacity

• Included with Printer: 330 ml per color

• Available Replacements:

  • 160 ml: PFI-3100 (BK, C, M, Y, PC, PM, GY, PGY, R, B, CO), PFI-2100 (MBK)

  • 330 ml: PFI-3300 / PFI-2300 (MBK)

  • 700 ml: PFI-3700 / PFI-2700 (MBK)

Memory and Storage

• Standard RAM: 3 GB

• Hard Drive: 500 GB

Media Handling

• Roll Feed (Front): One roll, front output

• Manual Feed (Front): Front input, front output

• Media Width:

  • Rolls: 6"–44" (152.4–1118 mm)

  • Sheets: 6"–44" (152.4–1118 mm)

• Cutter: Automatic horizontal cutting (rotary blade)

• Media Thickness: 0.002"–0.03" (0.07 mm–0.8 mm)

• Core Size: 2" standard, 2"/3" with RH2-46 adapter

• Max Roll Diameter: ≤ 6.7" (≤ 170 mm)

• Output Tray: Basket catch

Software

• Included Software:

  • Accounting Manager

  • Device Management Console

  • Direct Print Plus

  • Free Layout Plus

  • imagePROGRAF Printer Driver (Windows® / macOS®)

  • Media Configuration Tool

  • PosterArtist (Online and Lite)

  • Canon Print Service

  • Professional Print & Layout

  • Quick Utility Toolbox

System Requirements

• OS Compatibility:

  • Windows 7/8.1/10/11 (32/64-bit)

  • Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit)

  • macOS v10.15.7 – macOS 13

• Printer Languages: SGRaster (Swift Graphic Raster), PDF, JPEG

Connectivity

• Interfaces:

  • USB 2.0 Hi-Speed

  • 10/100/1000Base-T/TX Ethernet

  • Wireless LAN (IEEE 802.11 b/g/n)

Power & Environmental

• Power Supply: AC 100–240V, 50/60Hz

• Power Consumption:

  • Max: ~85W

  • Standby: ~1.7W

  • Power Off: ~0.1W

• Environmental Certifications: ENERGY STAR®, EPEAT Gold

• Operating Environment:

  • Temperature: 59–86°F (15–30°C)

  • Humidity: 10–80% RH (non-condensing)

Dimensions & Weight

• Printer (with stand and open basket): 62.7" (W) × 38.7" (D) × 46" (H), 273.4 lbs

• Boxed (main unit with pallet): 71.7" × 36" × 41.2", 407.9 lbs

Optional Accessories

• Multifunction Roll Unit (RU-43)

• Roll Holder Set 2"/3" (RH2-46)

User-Replaceable Parts

• Ink Tanks:

  • 160 ml: PFI-3100 / PFI-2100 MBK

  • 330 ml: PFI-3300 / PFI-2300 MBK

  • 700 ml: PFI-3700 / PFI-2700 MBK

• Print Head: PF-10

• Maintenance Cartridge: MC-30

• Cutter Blade: CT-07

What’s in the Box

• Canon imagePROGRAF PRO-4600 44" Printer

• 330 ml Starter Ink Tanks (all colors)

• 1 Print Head

• Maintenance Cartridge

• Roll Holder (2") with 3" Adapters

• Installation Guide

Downloads available:
