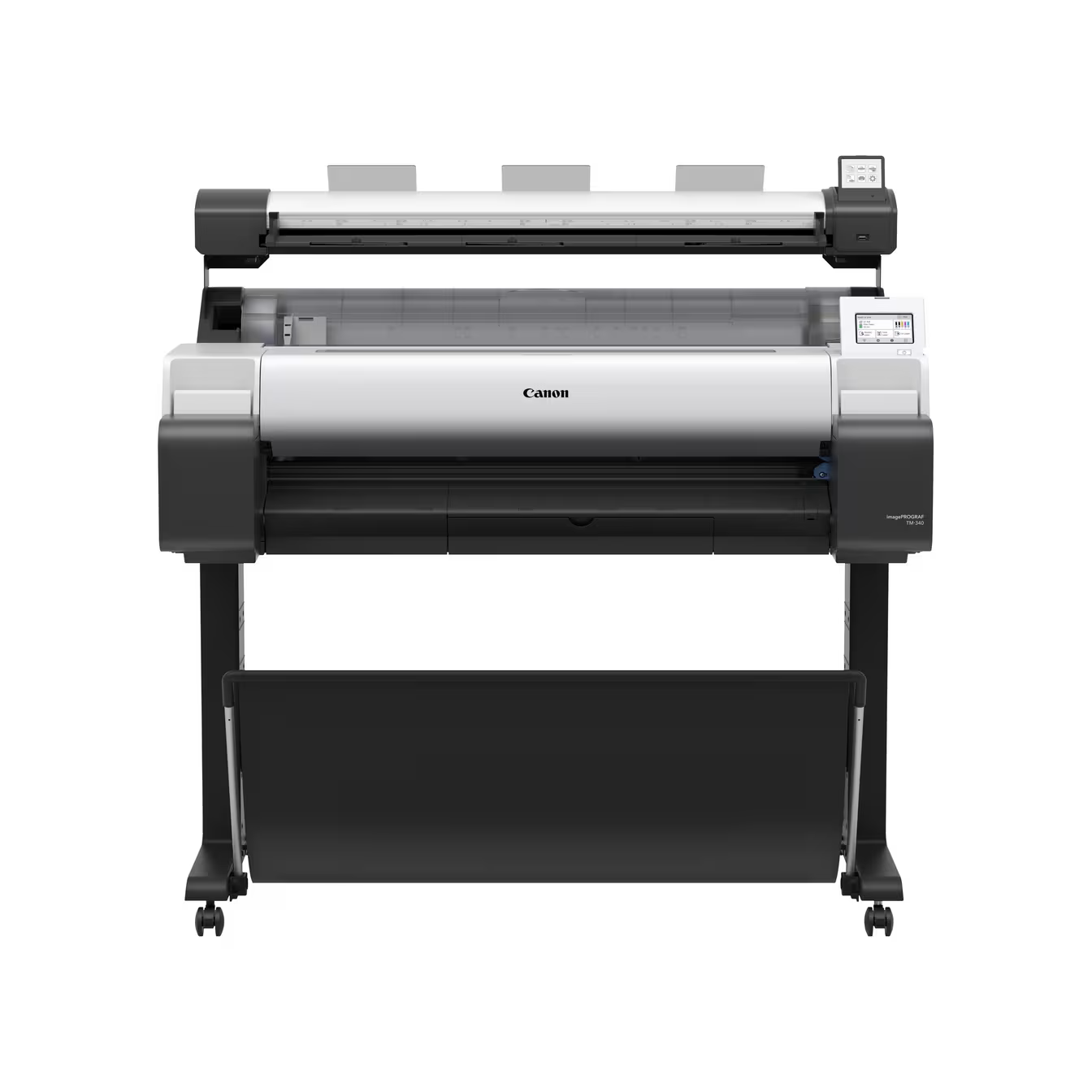

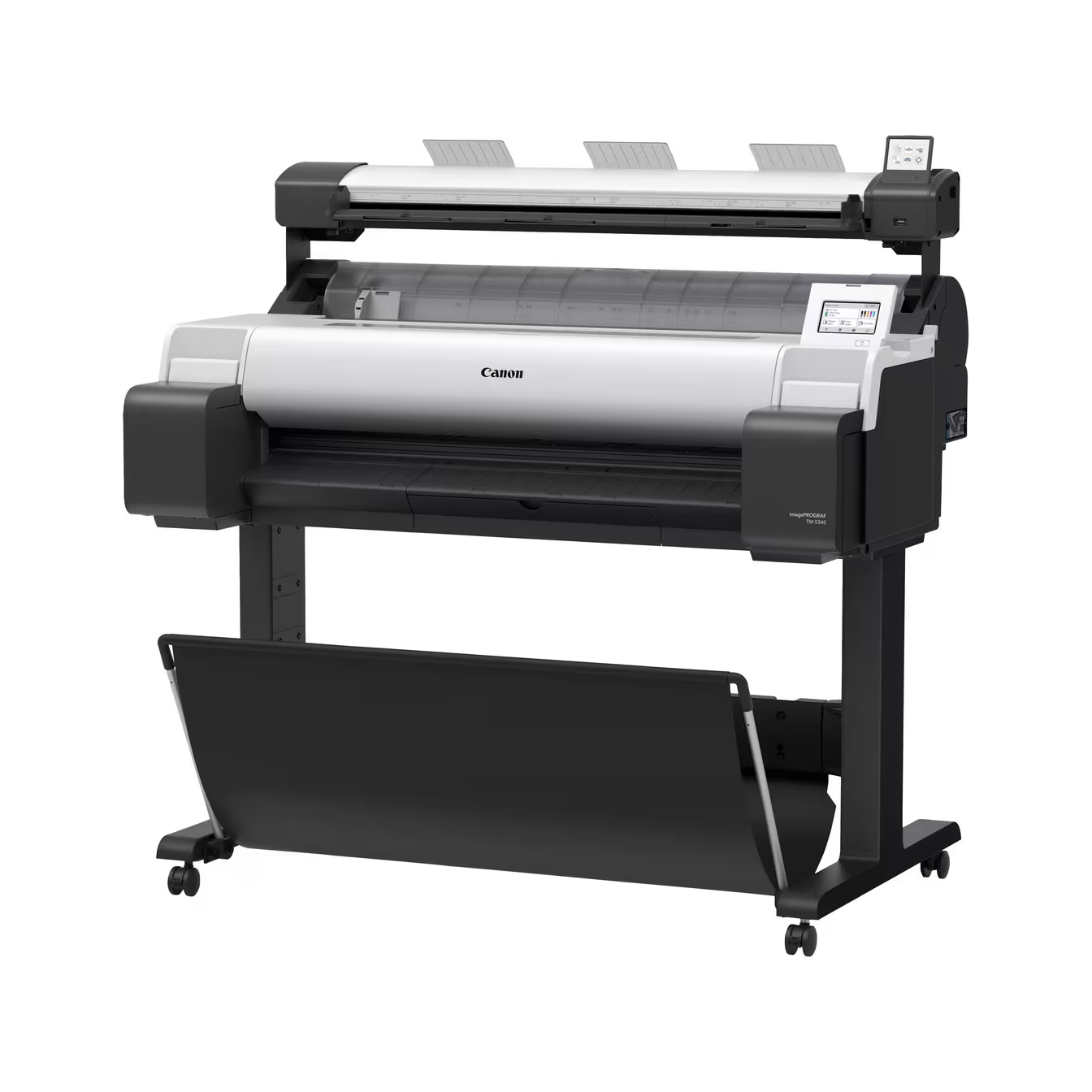

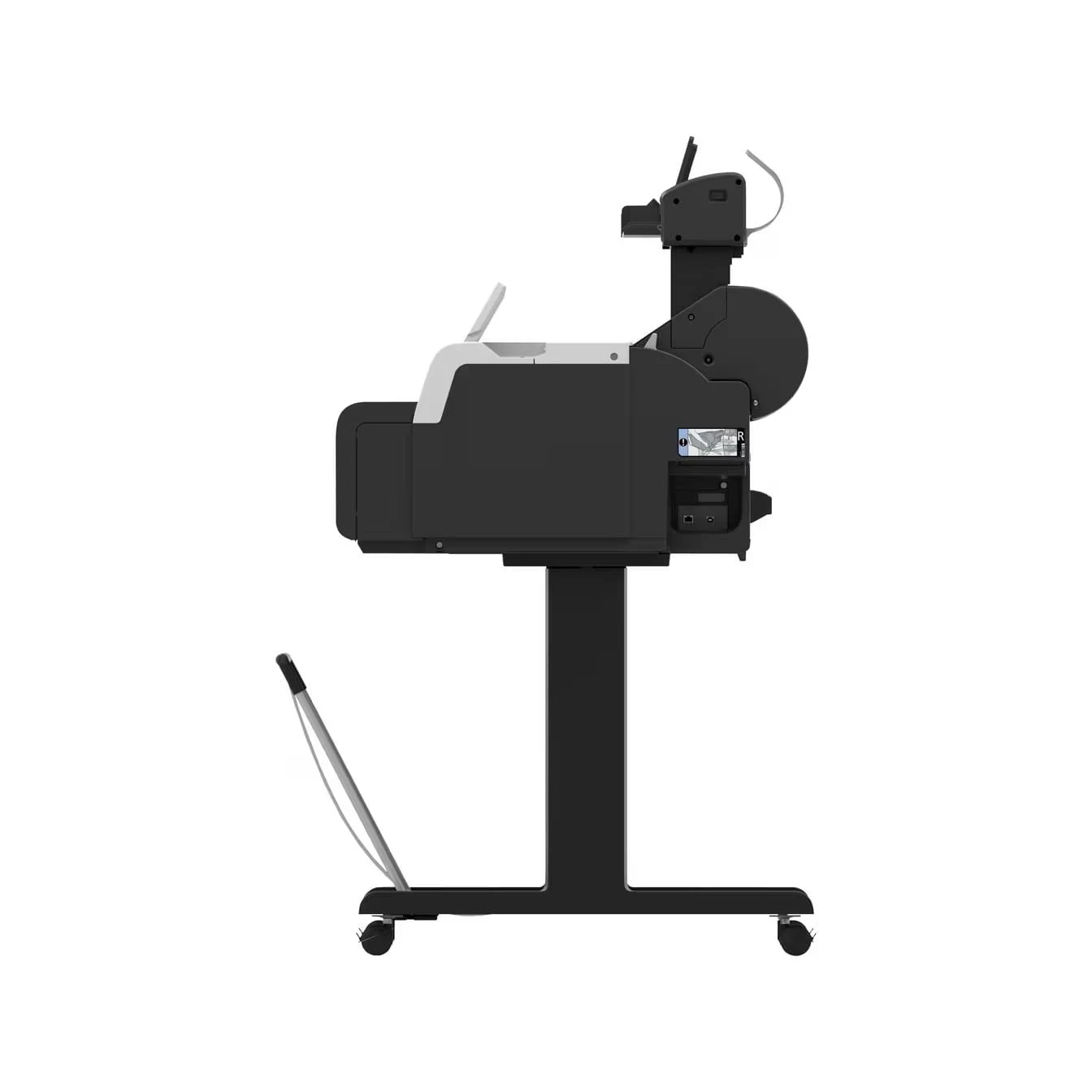

Canon imagePROGRAF TM-340 Printer with Stand / 300 ml Inks and Lm36 Scanner

€166.33

Quantity

pcs.

Availability:

low quantity

Ask about the product

Kup na raty

Shipping time: 3 days

Shipping

from €3.86 - InPost (Poland)

Opis

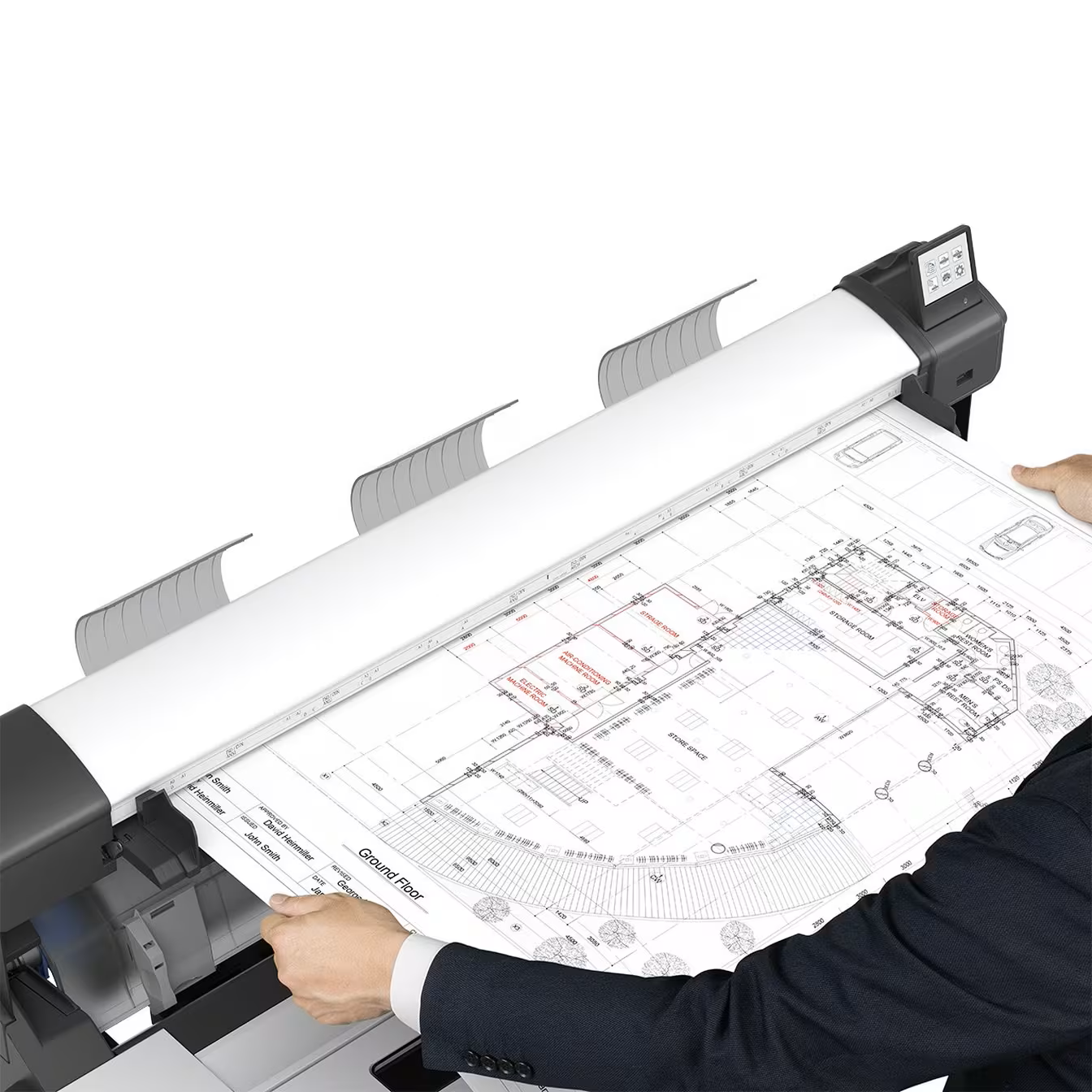

SCANNER TECHNOLOGY

Scanning Technology:
Single sensor with multiple LED diodes

Maximum Resolution (dpi):
600 dpi

Scanning Speed (COPY mode):

300/300 dpi, draft copy = 1 inch/sec (color), 3 inches/sec (monochrome)
300/600 dpi, standard quality = 1 inch/sec (color), 3 inches/sec (monochrome)
600/600 dpi, best quality = 0.5 inch/sec (color), 1.5 inches/sec (monochrome)

Scanning Speed (SCAN mode):

200 dpi, draft copy = 1 inch/sec (color), 3 inches/sec (monochrome)
300 dpi, standard quality = 0.5 inch/sec (color), 1.5 inches/sec (monochrome)
600 dpi, best quality = 0.33 inch/sec (color), 1 inch/sec (monochrome)

Scanning Modes:

Scan to USB memory – RGB / grayscale / black & white, TIFF (without ScanApp software)
Scan to USB – RGB / grayscale / black & white, JPG, PDF, PDF/A, M-PDF (ScanApp software available)
Scan to computer – RGB / grayscale / black & white, TIFF, JPEG, PDF, PDF/A, TIFFG4, M-PDF
Copying – RGB / grayscale / black & white
Copying and archiving – (combination of copying and scanning to computer). Cloud connectivity via Canon Direct Print & Share software. Printing is done through Canon Direct Print & Share software.

Paper Path:
Scan image side up, original output from the back. Paper feeding only forward. Document guides included.

Maximum Scanning Width: 914.4 mm (36 inches)
Minimum Scanning Width: 152.4 mm (6 inches)
Maximum Document Width: 965.2 mm (38 inches)
Maximum Scan Length: 2768 mm (109 inches)

Document Thickness:
Designed for scanning paper for CAD applications for Canon iPF printers.
Minimum = 0.07 mm
Maximum = 0.8 mm

Scanning Accuracy: 0.2% +/-1 pixel

Interface: USB 2.0, supports FAT32 up to 128 GB
Network Scanning: ScanApp application – scan folder configuration.

Minimum Computer Requirements:

Windows 7/8/10 32-bit
100 Mb/s Ethernet
Intel Celeron, Core-Duo, Core-2-Duo, Hyper-Threading (HT) 2.8 GHz or AMD Dual-Core processors
2 GB RAM
Fast 7200 RPM SATA HDD with minimum 2 GB free for applications and 20 GB free for images

Recommended Computer Specifications:

Windows 7/8/10 64-bit
1 Gb Ethernet
Intel i3, i5 or i7 processors
4 GB RAM
Fast 7200 RPM SATA HDD with minimum 2 GB free for applications and 20 GB free for images

ScanApp Languages:
English, French, German, Italian, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese, Japanese, Czech, Polish

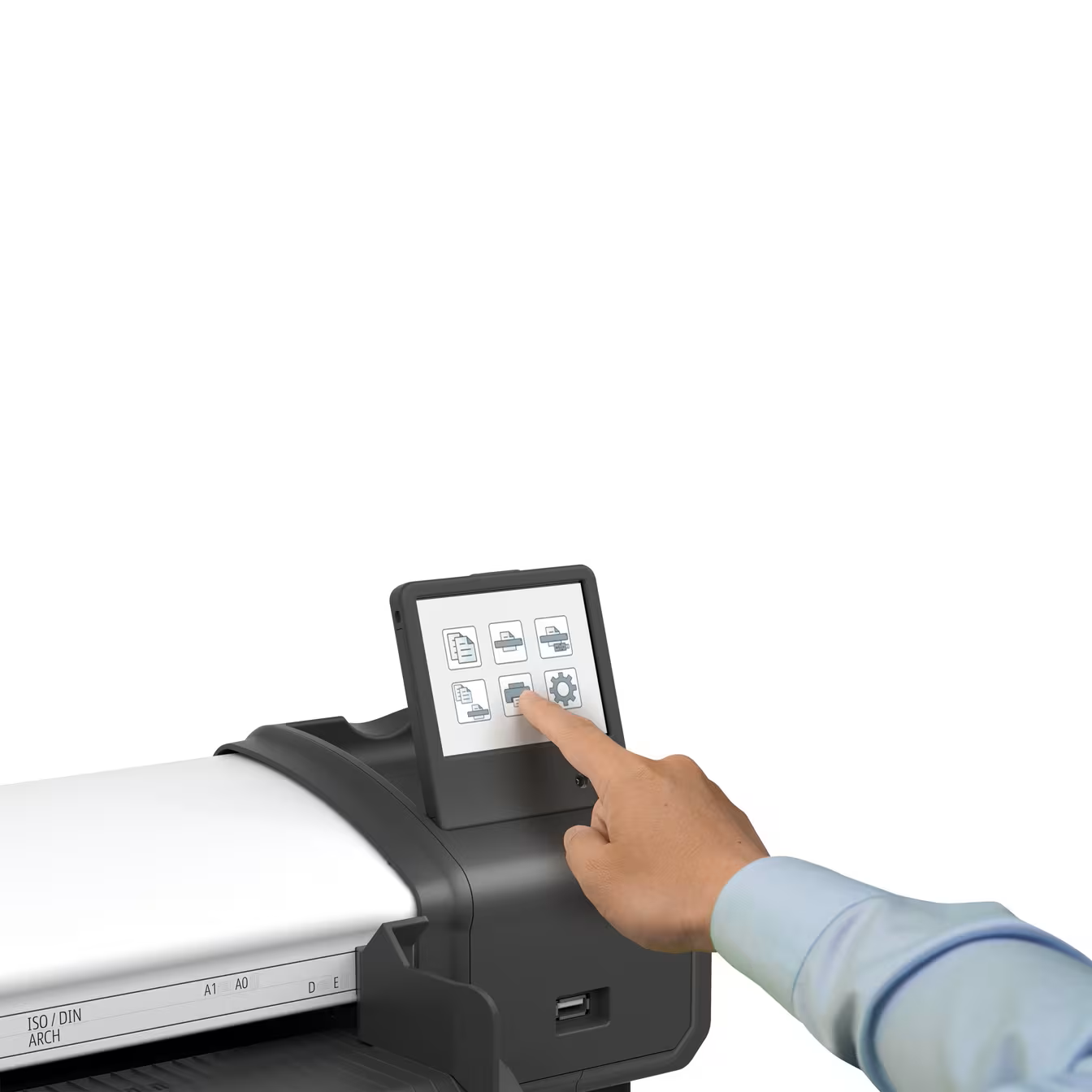

Control Panel: 3-inch touchscreen

Scanner Weight: 6.56 kg without document guide

Dimensions (W × H × D):
Width: 1238 mm; Height: 131 mm
Depth:

Without document return guide – paper tray folded: 146 mm
Without document return guide – paper tray horizontal: 193 mm
With document return guide – paper tray folded: 206 mm
With document return guide – paper tray horizontal: 253 mm

Certifications: CE (Europe), CB certificate (other countries)

Package Contents:
Scanner Lm36, printer mounting brackets, mounts, 3 mm tool, 2 desk feet, 2 paper edge guides, 3 document return guides, calibration pattern, CD with ScanApp software and PDF manuals (full and quick start), 2 m Ethernet cable, regional power supply with 2 m power cable.

PRINTER TECHNOLOGY

Printer Type:
5 colors, 36 inches

Printing Technology:
Canon Bubblejet on Demand, 6 integrated colors (6 nozzles per printhead × 1 printhead)

Print Resolution:
2400 × 1200 dpi

Number of Nozzles:
Total: 15,360 nozzles; MBK: 5120 nozzles; BK, C, M, Y: each 2560 nozzles

Line Accuracy:
±0.1% or less

User Adjustment Required:
Printing environment and media must match those used during calibration.

Nozzle Pitch:
1200 dpi × 2 lines

Ink Droplet Volume:
Minimum 5 pl per color

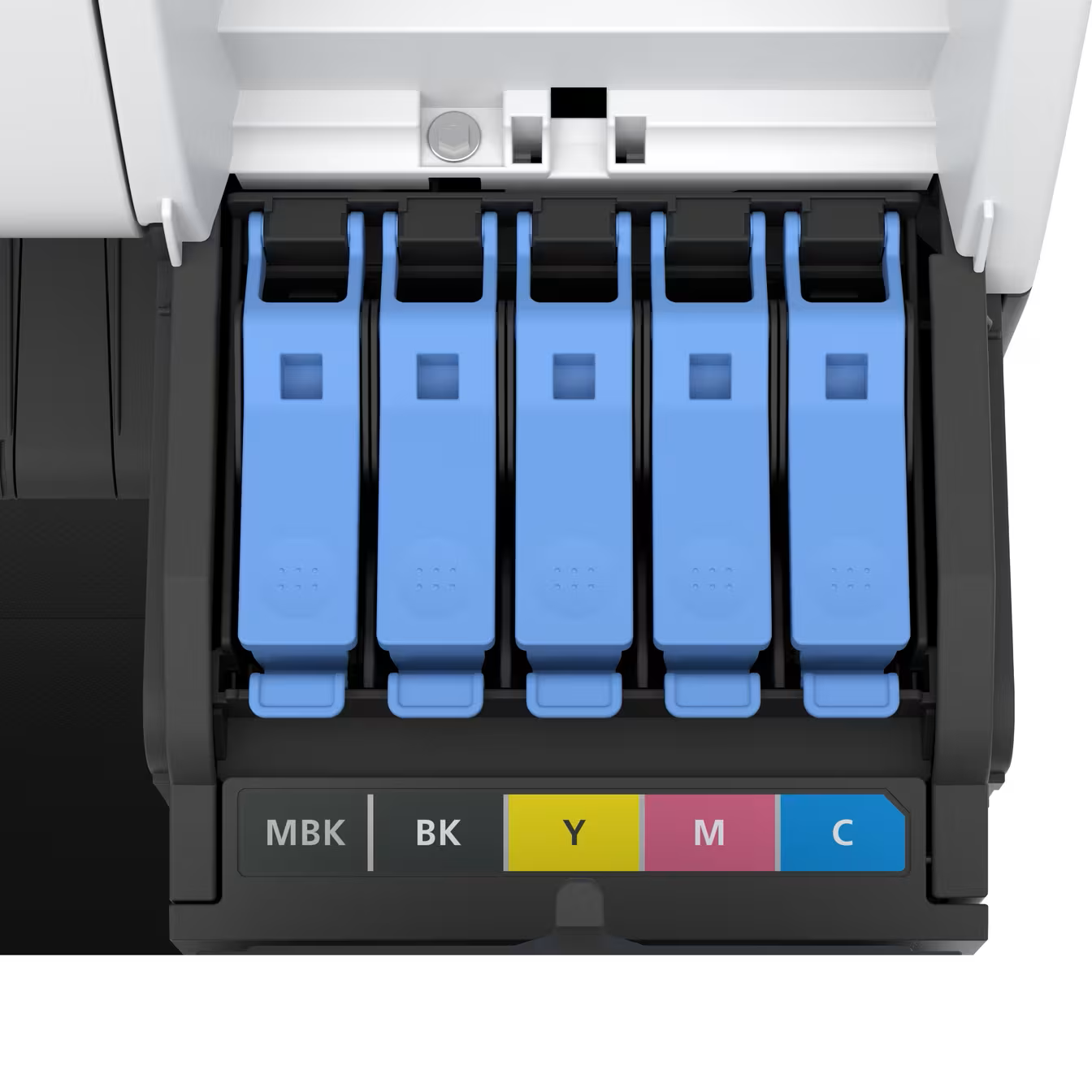

Ink Cartridge Capacity:
Starter ink included: 300 ml (MBK: 80 ml, BK, C, M, Y: 4 × 55 ml)
Ink sold separately: 55 ml (MBK, BK, C, M, Y)

Ink Type:
Pigment ink: 5 colors (MBK/BK/C/M/Y)

Operating System Compatibility:

32-bit: Windows 7, 8.1, 10
64-bit: Windows 7, 8.1, 10, 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7 to macOS 13

Other Supported Protocols:
Apple AirPrint

Printer Languages:
HP-GL/2, HP RTL, JPEG (JFIF 1.02), CALS G4 (FTP only)

Standard Interfaces:
USB B: Hi-Speed USB
Ethernet: IEEE802.3ab (1000base-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/g/b (* wireless LAN on/off described in user manual)

MEMORY
Standard memory: 2 GB
No expansion slot
No hard disk

PRINT SPEED

CAD Drawing:
Plain paper (A1): 0:21 min (fast, economy mode), 2.7 pages/min
Plain paper (A0): 0:41 min (fast, economy mode)
0:42 min (fast mode)
1:25 min (standard mode)

Poster:
Plain paper (A0): 0:43 min (fast, economy mode)
0:43 min (fast mode)
1:25 min (standard mode)
Coated thick paper (A0): 1:42 min (fast mode)
3:10 min (standard mode)

MEDIA HANDLING

Media Feed & Take-up:
Roll paper: one roll, top load, front output
Sheets: top load, front output (manual feed with material lock lever)

Media Width:
Roll paper: 203.2–917 mm
Sheets: 210–917 mm

Media Weight:
Rolls/sheets: 0.07–0.8 mm thickness

Minimum Print Length:
Roll paper: 203.2 mm
Sheets: 279.4 mm

Maximum Print Length:
Roll paper: 18 m (depends on OS and application)
Sheets: 1.6 m

Maximum Roll Diameter: 150 mm
Roll Core Diameter: 2 inches / 3 inches (optional)

Margins – Recommended Area:
Roll paper: top 20 mm, bottom 3 mm, sides 3 mm
Sheets (Apple AirPrint): top 20 mm, bottom 31 mm, sides 3 mm
Sheets (other): top 20 mm, bottom 20 mm, sides 3 mm

Margins – Printable Area:
Roll paper: top 3 mm; bottom 3 mm; sides 3 mm
Roll paper (borderless print): top 0 mm; bottom 0 mm; sides 0 mm
Sheets (Apple AirPrint): top 3 mm; bottom 12.7 mm; sides 3 mm
Sheets (other): top 3 mm; bottom 20 mm; sides 3 mm

Input Capacity:
Roll paper: 1 roll
Sheets: 1 sheet

Borderless Printing Widths (roll only):
Recommended: 515 mm (JIS B2), 728 mm (JIS B1), 594 mm (ISO A1), 841 mm (ISO A0), 10", 14", 17", 24", 36"
Printable area: 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 515 mm (JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300 mm, 500 mm, 600 mm, 800 mm

Borderless printing in other formats is only possible on user-defined roll papers.

Maximum Number of Delivered Prints:
Standard position – 1 sheet

PACKAGE CONTENTS

Printer, printer stand, 1 printhead, power cable, 1 set of starter ink tanks, installation manual, safety/environment leaflet, LFP EUR address card, important information sheet, basic printer stand installation guide, PosterArtist WEB program info.

Included Software:
Downloadable via the internet.

OPTIONS

Optional items:
2-inch / 3-inch roll holders: RH2-35
IC card reader holder: RA-02

CONSUMABLES

User-replaceable parts:
Ink tanks: M: PFI-031 (55 ml), MBK/BK/C/Y: PFI-030 (55 ml)
Printhead: PF-06
Cutting blade: CT-08
Maintenance cartridge: MC-31
