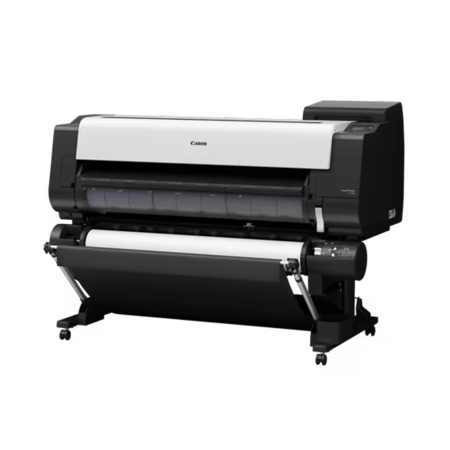

Printer imagePROGRAF TX-4200 printer with stand (1650 ml)

€5,554.75

Quantity

pcs.

Availability:

low quantity

Ask about the product

Kup na raty

Shipping time: 3 days

Shipping

from €0.00 - Courier Poland (Poland)

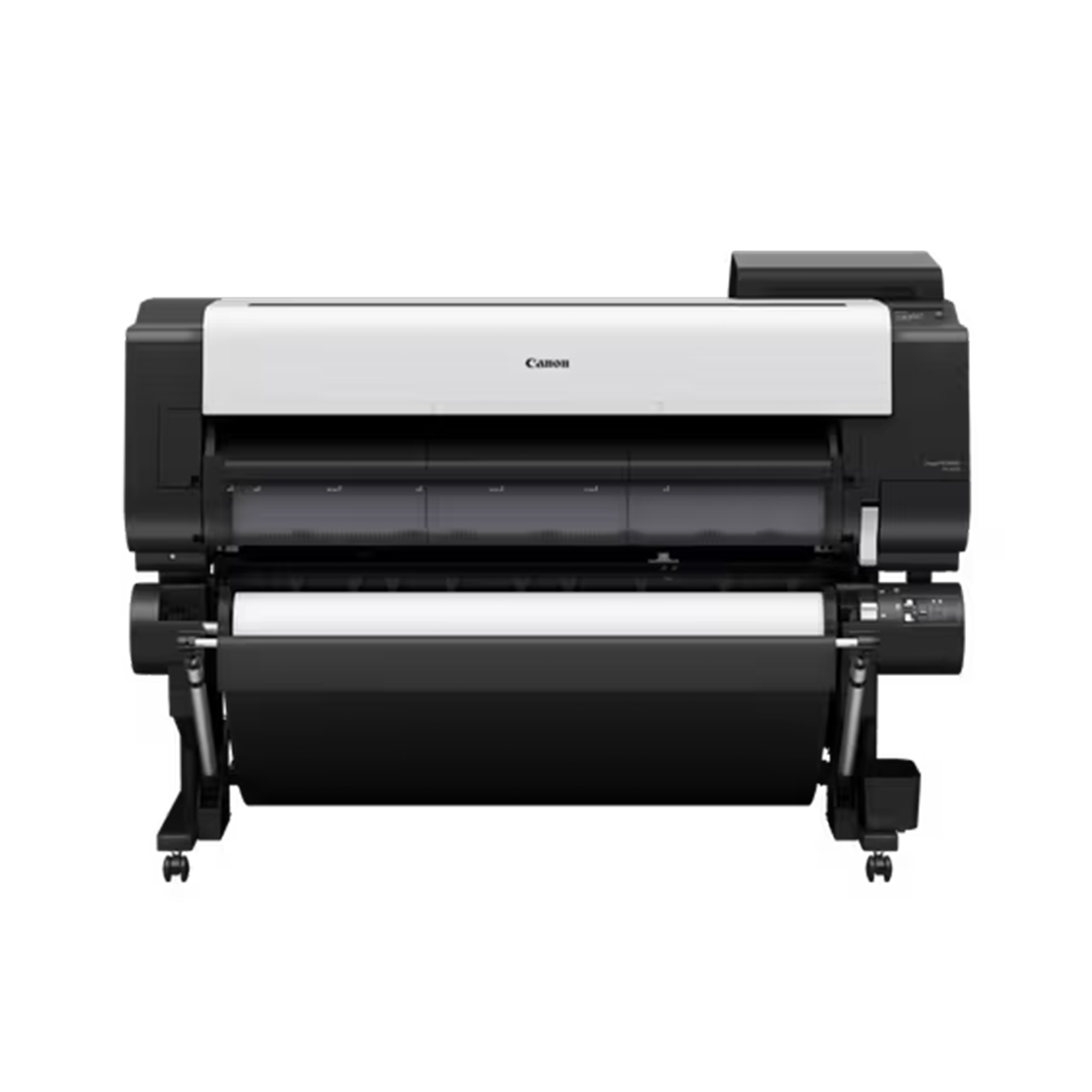

Printer imagePROGRAF TX-4200 with Stand

PRINTER TECHNOLOGY

Printer type
5 colors, 44 inches

Printing technology
Canon Bubblejet on Demand, 6 integrated colors (6 color channels on 1 print head)

Print resolution
2400 × 1200 dpi

Number of nozzles
Total: 15,360 nozzles; MBK: 5120 nozzles
BK, C, M, Y: 2560 nozzles each

Line accuracy
±0.1% or less

User adjustment required. Printing environment and media must match those used during adjustment.

Nozzle pitch
1200 dpi × 2 lines

Ink droplet volume
Minimum 5 pl per color

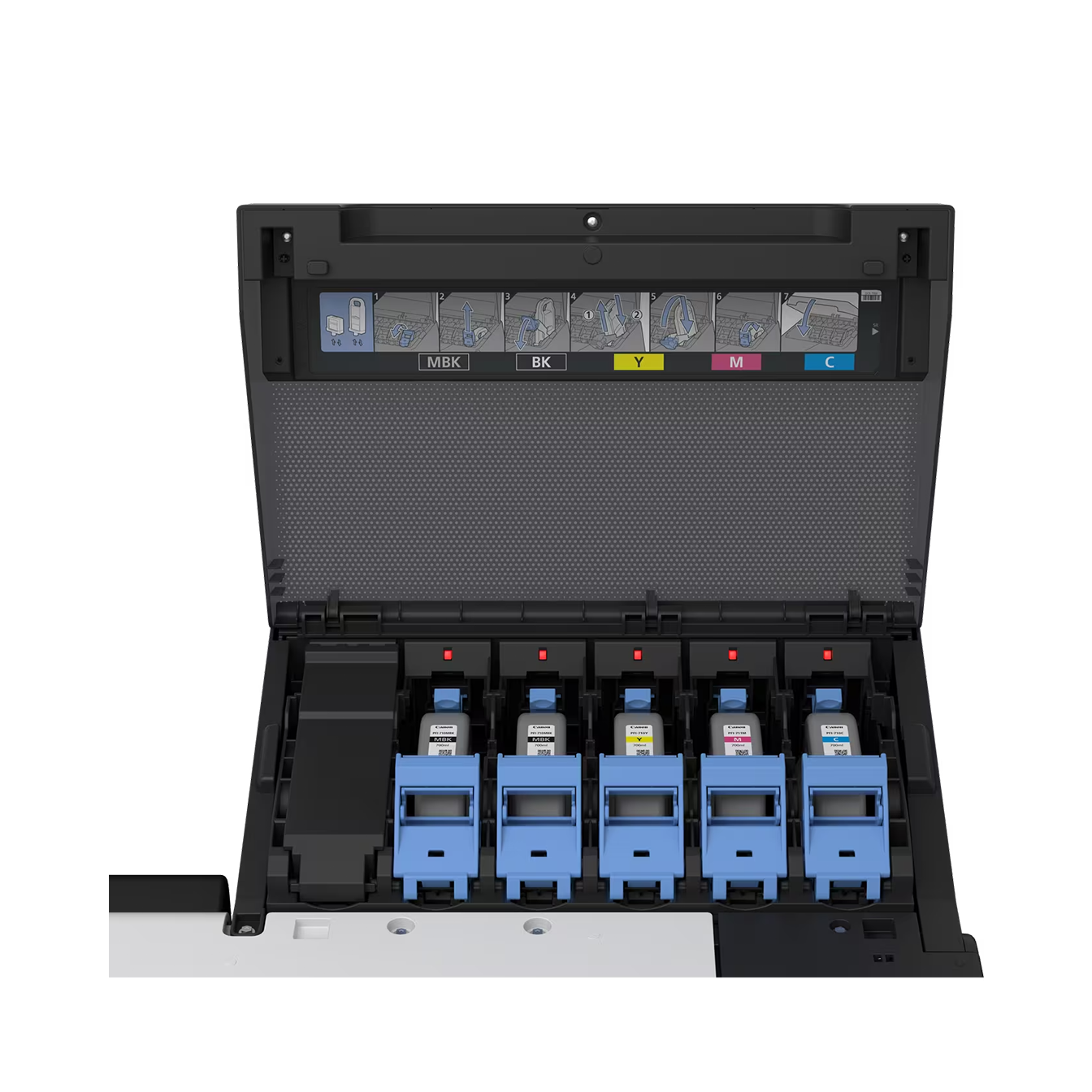

Ink tank capacity
Starter ink included: 1650 ml (330 ml per color)
Ink sold separately: 160 ml / 330 ml / 700 ml

Ink type
Pigment ink: 5 colors (MBK/BK/C/M/Y)

COMPATIBILITY

32-bit: Windows 7, Windows 8.1, Windows 10
64-bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 11.7.10 to macOS 14.x

Other supported job transfer protocols:
Apple AirPrint

PRINTER LANGUAGES

HP-GL/2, HP RTL, PDF (ver. 1.7), JPEG (ver. JFIF 1.02), CALS G4 (FTP transfer only)

INTERFACES

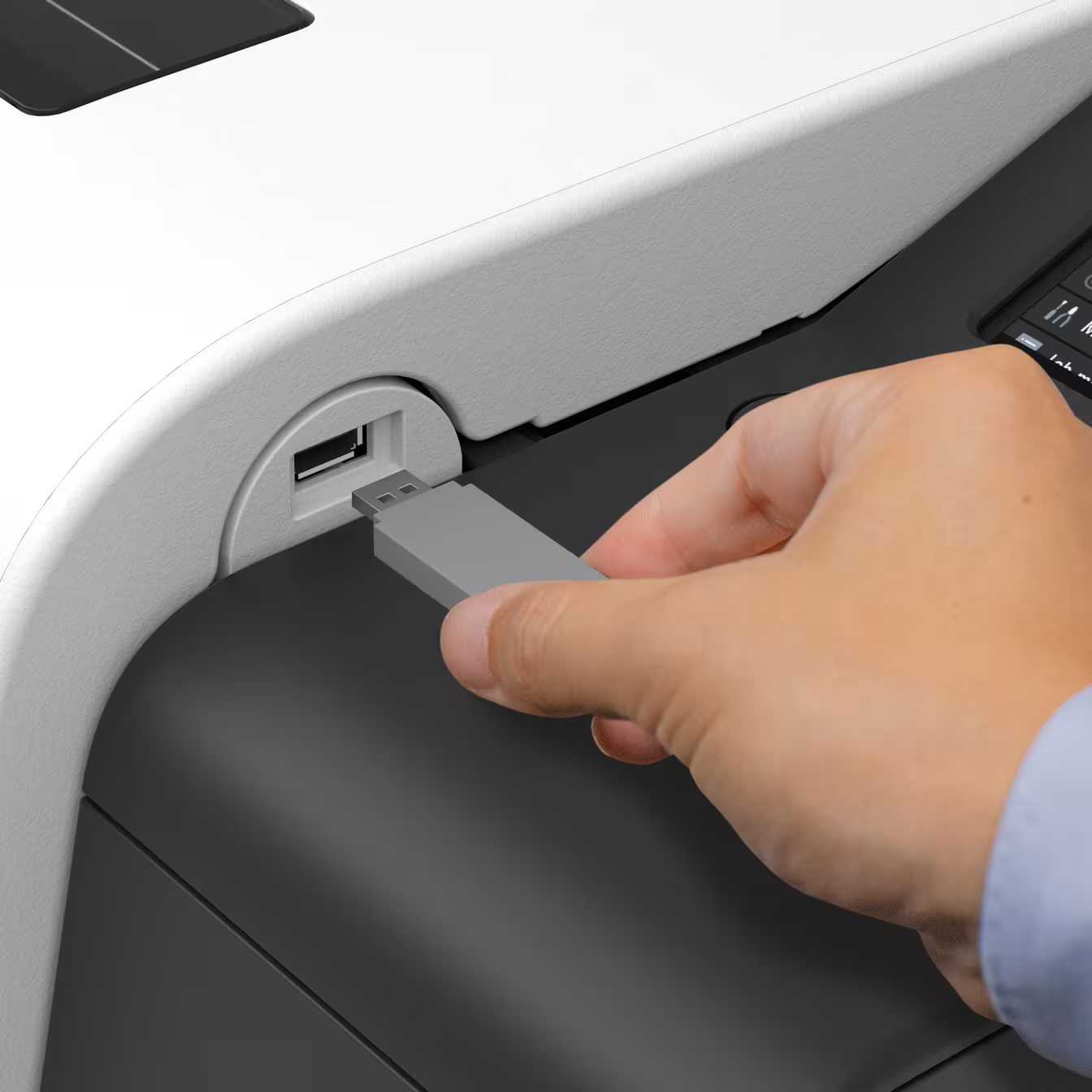

USB A: USB memory (direct printing)
USB B: Hi-Speed USB
Ethernet: IEEE802.3ab (1000base-T), IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T), IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

See user manual for wireless LAN on/off instructions.

MEMORY

Standard memory: 128 GB (physical memory: 2 GB)
Expansion slot: none
Hard disk: 500 GB (encrypted)

PRINT SPEED

CAD drawing
Plain paper (A1)
0:17 (fast, economy mode): 3.3 pages/min

Plain paper (A0)
0:33 (fast, economy mode)
0:35 (fast mode)
1:06 (standard mode)

MEDIA HANDLING

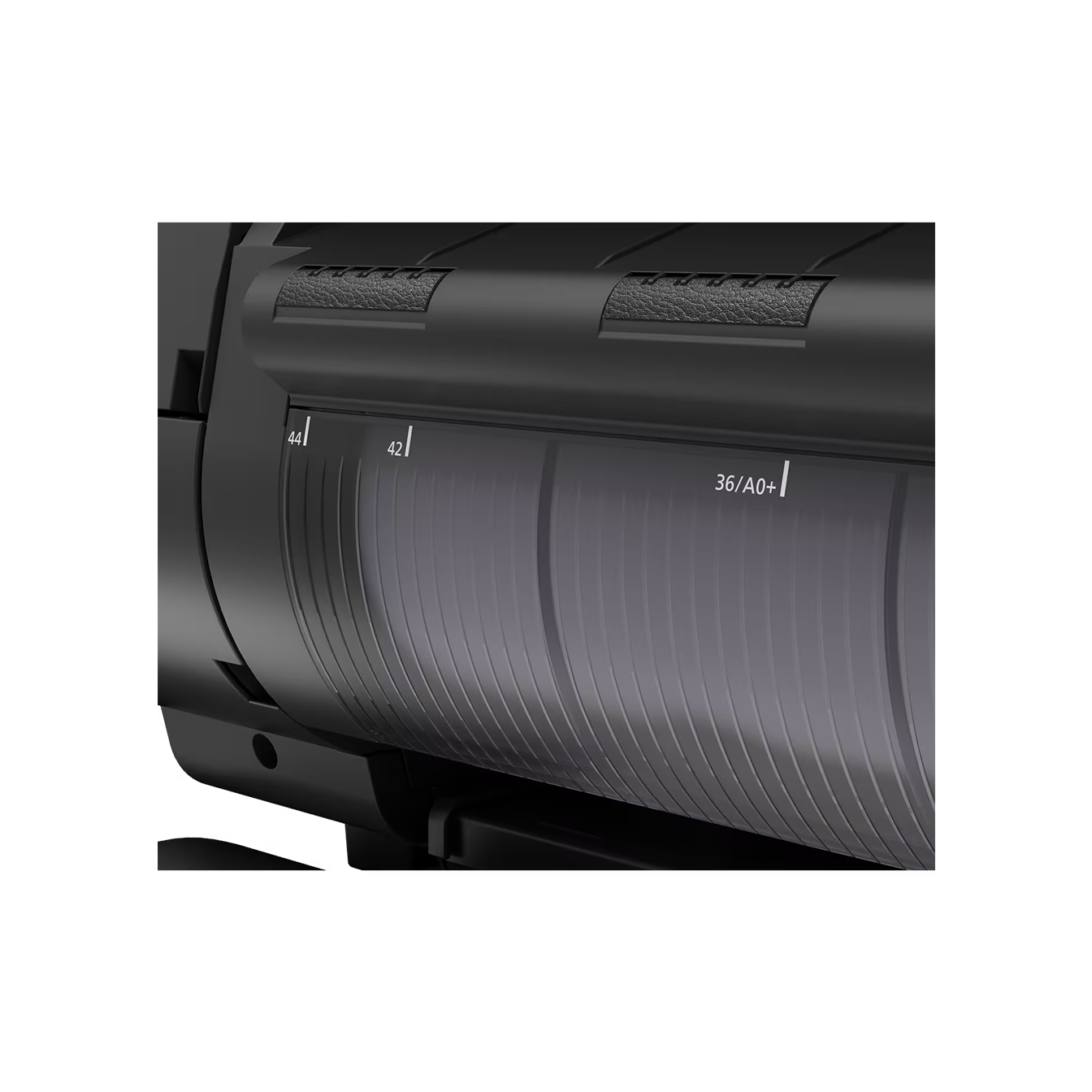

Media feed and take-up

Roll paper: one roll, front loading, front output
Additional roll paper: one roll, front loading, front output
Sheets: front loading, front output (manual feed using material lock lever)

Media width

Roll paper: 152.4–1118.0 mm
Sheets: 152.4–1118.0 mm

Media thickness
Roll/Sheets: 0.07–0.8 mm

Minimum print length

Roll paper: 101.6 mm (exceptions: fabric, tracing paper, semi-transparent matte film; for these media: 200 mm)
Sheets: 203.2 mm

Maximum print length

Roll paper: 18 m (depends on OS and application)
Sheets: 1.6 m

Maximum roll diameter
170 mm

Media core size
Roll inner diameter: 2 inches / 3 inches

DIMENSIONS AND WEIGHT

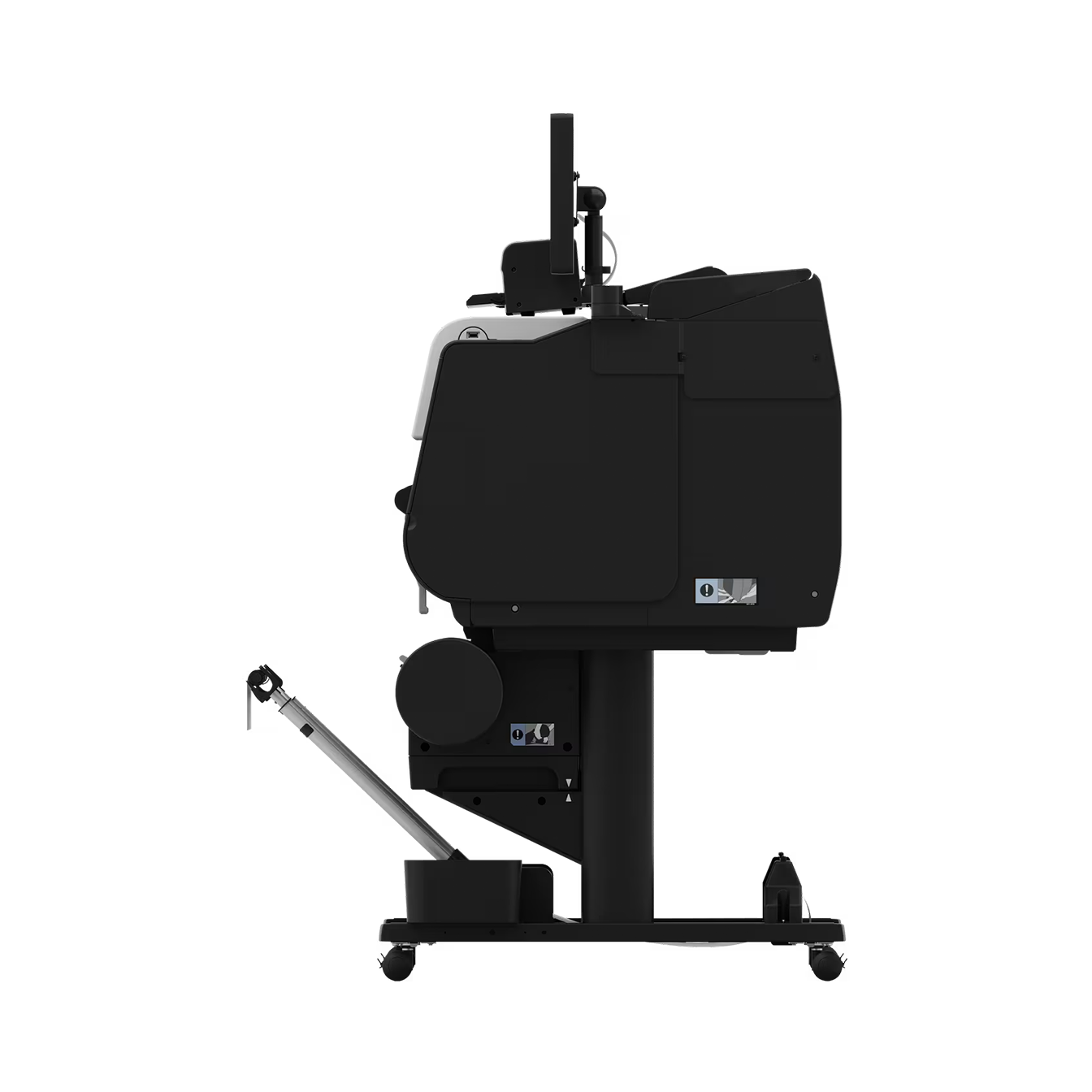

Main unit with stand
1593 × 984 × 1168 mm (basket open)
1593 × 766 × 1168 mm (basket closed)
Weight: 112 kg (with roll holder, without ink and print head)
